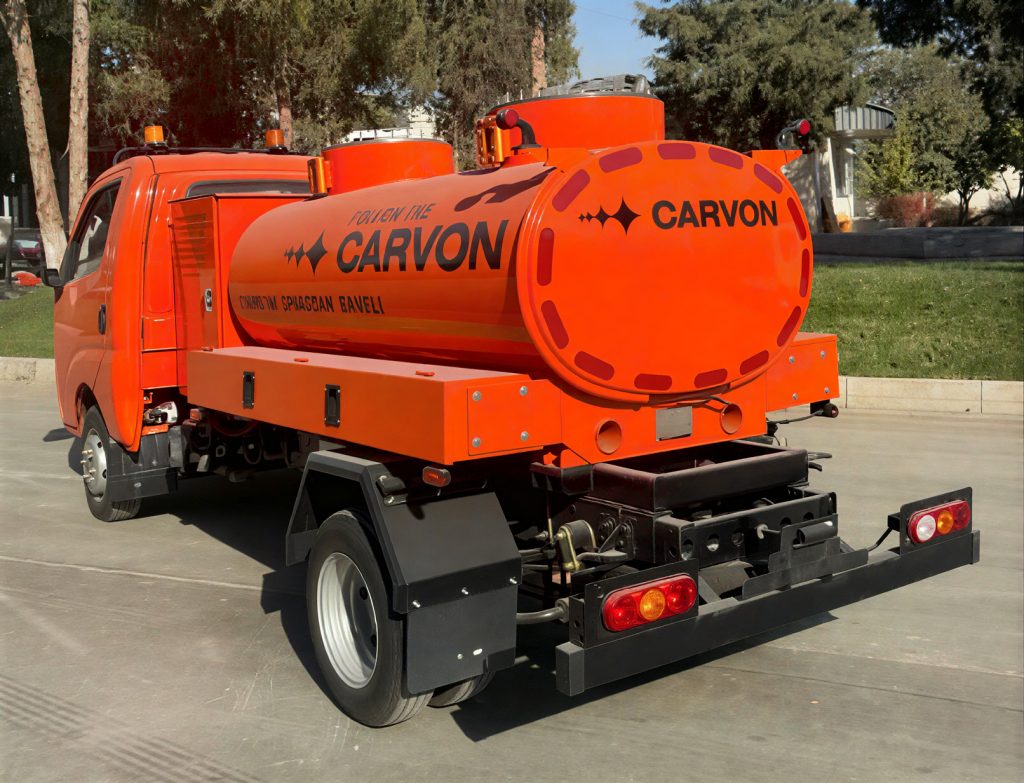

Fuel Tank Truck / Refueller ATZ (4 m³ / 5 m³ / 6 m³)
Fuel tank truck (ATZ) designed for transportation, storage, and dispensing of petroleum products. The vehicle is equipped with an elliptical fuel tank and a high-capacity pump, ensuring efficient refuelling operations for construction sites, industrial facilities, agricultural enterprises, and logistics operations. The design supports safe operation, quick fuel discharge, and compatibility with various base chassis configurations.
– Tank volume options: 4,000 L / 5,000 L / 6,000 L
– Single-compartment or two-compartment tank configuration
– Installation on various chassis brands
– Adaptation for specific fuel types
– Enhanced safety package according to customer requirements
– Individual configuration based on technical specification (TOR)
– Elliptical fuel tank
– Fuel pump with capacity up to 500 L/min
– Fuel dispensing unit
– Fuel filter and PPO-40 flow meter
– Refuelling hose Ø25 mm
– Refuelling nozzle with 10 m hose
– Pressure–suction hoses in foam cases (2 pcs × 4 m)
– Aluminum manhole cover with filling neck
– Aluminum quick-release couplings
– Fire extinguishers
– Fuel tank protection system
– Spark arrestor
– Grounding chain
– Working area lighting
